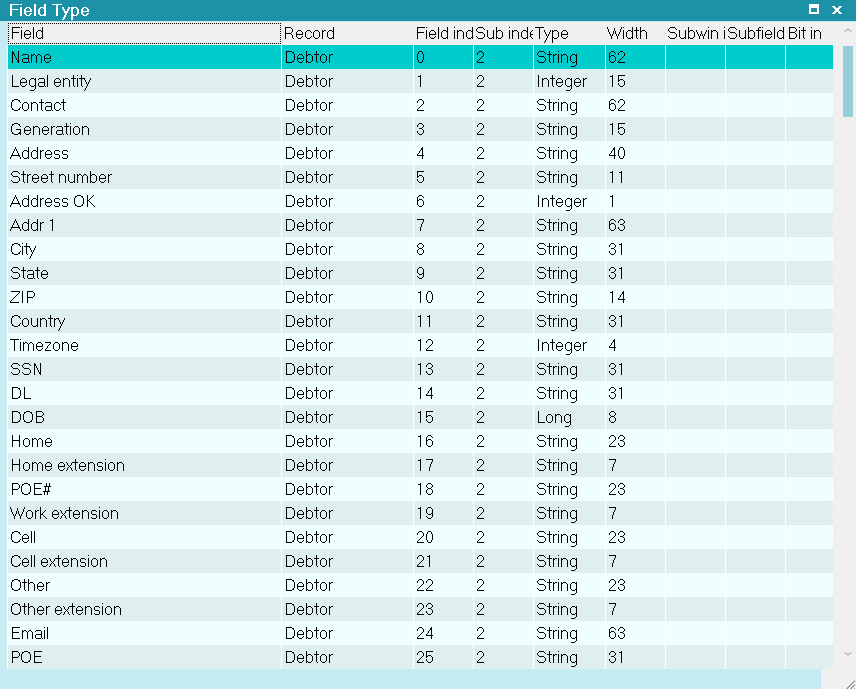

Field Type
The Field Type list shows the fields that we can import into.
When you define an Import format, you will pick from this list of
fields and then tell Import where in the source file the field
information is located. Import Field Definitions are used by
Collect! to determine how to handle the details of your import
specifications.
Select File from the top menu bar and then select Import/Export
and then Field Definitions to view the complete list of database
fields that can be imported into.
Import Field Type
This list is READ ONLY. Collect! uses the settings for
internal processes. If you think the settings have been altered,
rebuild the list.
You can rebuild this list by pulling down the File menu and
selecting Import/Export, Update Definitions.
Field
This is the name of the field from the Collect! dialog.
For a list of importable fields, please refer to
the record type that you are importing to.
Record
This is the name of the dialog this field is contained in.
Please note that some records may display fields from other
forms. For example, the Debtor Record will also display fields
from the Debtor Detail, Misc, Group, and financial forms.
Field Index
This field holds a value that is used internally by Collect!.
It is useful for applications that read Collect!'s database
information. Please do not attempt to alter its value.
Sub Index
This field holds a value that is used internally by Collect!.
It is useful for applications that read Collect!'s database
information. Please do not attempt to alter its value.
Offset
This field holds a value that is used internally by Collect!.
It is useful for applications that read Collect!'s database
information. Please do not attempt to alter its value.
Size
This is the size of the field. This is useful when building
an import. You will want to know whether the data you
are attempting to import will fit in the field.
Type
This is the data type of the field. This is useful when building
an import. You will want to know whether the data you
are attempting to import is the same type of data as the
field where you intend to put it.
Width
This is the display width of the field on the Collect! screen.
Subwin Index
This field holds a value that is used internally by Collect!.
It is useful for applications that read Collect!'s database
information. Please do not attempt to alter its value.
Subfield Index
This field holds a value that is used internally by Collect!.
It is useful for applications that read Collect!'s database
information. Please do not attempt to alter its value.
Bit Index
This field stores a switch (ON or OFF, for instance). It
is used for buttons, check marks etc.
Form Name
This field will display the name of the form that this field is
associated with.
Used In
This is the Field Import Specification list, containing a list of all
the field types used in this import routine.
OK
Selecting this button will save any data you have
entered and return you to the previous form.
Cancel
Select this button to ignore any changes you may
have made and then return to the previous form.
Next
Select this to move to the next Field Type
in this Record Type.
Prior
Select this to move to the previous Field Type
in this Record Type.
|
