How To Use Prompts In A Report

Collect!'s report writer enables you to query the user for data while running a report. The information entered by the user is then used by the report to complete the next steps. This may be used to apply a filter to the data processed in the report. The report gives different results depending on the data the user enters in response to the Prompt. For example, Date range, Operators, Dollar amounts, Transaction codes, Status codes and more can be specified through a prompt. Several examples are given below.

You can also mask data entered when a prompt is presented to the user. This is useful for example, when a manager needs to enter an authentication code to complete a process. You can mask the code entered to hide it from the operator while enabling them to carry on to the next step. Please see examples following.

Prompt For Data Entry

The Prompt command is simply a question mark, ?.

The question mark is used with WHERE clauses and VARIABLES. This causes the report to pause before printing. A dialog box displays asking the user for a value to use to filter the report's data. For example, WHERE @de.na = ? will allow the user to type in a value.

WHERE ({field_code} = ?)

Example:
WHERE (@de.sta = ?)

Prompt With A Variable

@varInput* = ? Enter a value

The words following the question mark appear in the prompt to give the end user directions.

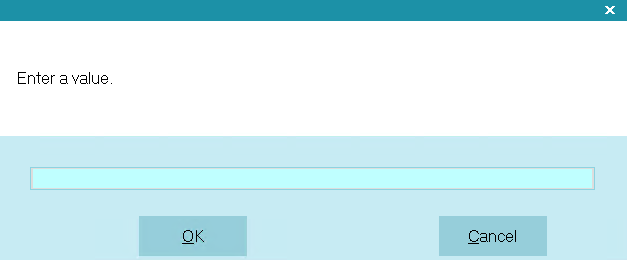

Prompt displays your words to the user

The value entered by the end user fills the variable, in this example, @varInput, and then it can be used in the report later on.

Example:

@de no total WHERE ( @de.u1 = @varInput )
@de.na
@de

When using a variable to obtain data, be sure to assign the correct data type to the variable first! In the example below, the variable @tvarOwing is initialized as currency with the $ symbol.

For example:

@tvarOwing$ = 0.00
@tvarOwing = ? Enter the minimum Debtor's Owing Amount

@cl.de no total WHERE (@de.sta = ACT) WHERE (@de.ow > @tvarOwing)
@de.na @de.fi
@cl.de

Prompt With Variable String

As well as a literal string, shown in the previous example, you can also use a variable or a field value when presenting the prompt to the end user.

Example 1:

@varPrompt*  = " "
@varPrompt   = "Please enter the Delinquency Date" if ( @de.sta = DLQ )
@varPrompt   = "Please enter the Listed Date" if ( @de.sta = NEW )
@varMessage* = ? @varPrompt

When this Prompt is displayed requesting input from the end user, the message they see will depend on the Debtor's Status code.

If the Debtor's Status is DLQ, then the message will say "Please enter the Delinquency Date" but if the Debtor's Status is NEW, the message will say "Please enter the Listed Date."

Example 2:

@varMessage* = ? @de.na

When this Prompt is displayed requesting input from the end user, the message the Debtor's Name will be displayed as the message.

As mentioned before, when using a variable to obtain data, be sure to assign the correct data type to the variable. The data type determines the number of digits and/or characters that may be entered in the prompt.

Prompt For A Range

You can also present more than one prompt to the end user, if you want to specify a range of data for your report.

Here is an example for a range of Operators:

Example:

@varFrom* = ? Enter an Operator to start with.
@varTo*   = ? Enter an Operator to finish with.

And this is how you might use it in a report,

To filter the Operator list:

@op no total WHERE ( @op.id = @varFrom .. @varTo )
@op.na
@op

To filter the Contacts list:

@co no total WHERE ( @co.co = @varFrom .. @varTo )
@co.co @co.ty @co.dda
@co

Prompt For A Date Range

When you prompt using a field that is a Date, Collect! will display the Calendar so that you can select a Date Range.

Example:

@de WHERE (@de.li = ?) MAX = 1
@de

When this code runs, a form will display prompting the user for a Date Range. The form title will change depending on your field_code. In the above example, a form named "Debtor Listed Range" will display.

Useful Note If you want a generic date prompt, you can use @da where ( @da.da = ? )

Useful Note To exclude a date range, you can use not equal: WHERE (@de.li != ?)

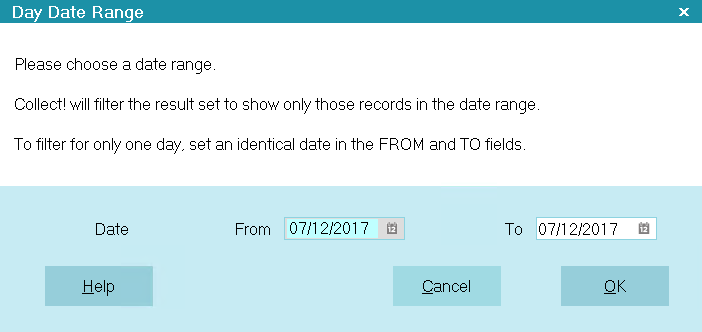

Prompt displays the Calendar when a Date field is used

Useful Note Whenever a prompt (?) is used with a Date field, the user will be prompted to enter a Date Range. The values entered are stored in the database as " Transaction Summary Report.From" and " Transaction Summary Report.To". These values are called by the report if you use their codes, @tsr.fr and @tsr.to.

Example:

@de no total where ( @de.li = @tsr.fr .. @tsr.to )
@de.li @de.na
@de

The values for @tsr.fr and @tsr.to stay set until they are changed by another prompt for a date range. This means that you can reference these dates in your code as above. The result will be a Date Range that is identical to the range you set earlier when the Prompt displayed.

Prompt For Range Of Transaction Posted Dates

This prompts for a Posted Date range from transactions. The user can enter a date in the From and To fields when the Prompt box is displayed.

Example:

@tr WHERE (@tr.pda = ?) MAX = 1
@tr

To use these results in a report, you can use codes that Collect! reserves for holding the date values in a range.

@tsr.fr is used to hold the date value"From".

@tsr.to is used to hold the date value "To".

In the report body, this would look like:

List of All Transactions Created From @tsr.fr To @tsr.to

@tr WHERE (@tr.pda = @tsr.fr .. @tsr.to)
@tr.de<40> @tr.pda @tr.pd @tr.tu>12> @tr.di>12>
@tr

If the user entered April 1, 2011 in the From value and April 30, 2011 in the To value, this report snippet would display a list of transactions in this date range with a Report heading.

"List of All Transactions Created From April 1, 2011 To April 30, 2011"

This particular code snippet would then use the same range to filter transactions where the Posted Date is in the range the user chose.

Prompt For Single Dates

The following example shows the use of operators in a WHERE clause using @tsr.to.

This date: [ Transaction Summary Report.To ], can be set by prompting for a Debtor Listing Date.

To prompt for the Listed Date at run time:

@de WHERE (@de.li = ?!) max = 1
@de

You will be prompted to enter a To date when the report is run. These dates are actually stored in the database.

To print all debtors within this range, the following code is used:

@de WHERE (@de.li = @tsr.to)
@de.li @de.na
@de

Configuring The Text For A Date Prompt

The @DATETEXT command allows you to set the text for date prompts. If not configured, Collect! will use the default help text associated with the date fields.

Syntax: @DATETEXT({parameters})

Examples:

@DATETEXT(Please enter the DOB.)
@DATETEXT(Please enter the Court Date.\n\nIt should be @tvarDate or later.)

Once set, you can use any date prompt to display the text: @da no total where ( @da.da = ?! ) MAX = 1

Useful Note "\n" refers to new lines. In Example 2, there are 2 line feeds creating double-spaced text.

Useful Note The command only accepts variables and the variables cannot have any characters after it other than a space or the closing bracket. Regular print codes like @d or @de.na won't work.

Prompt With Several Filters

The following example shows the use of operators in a WHERE clause to display the Client Analysis Report form with a variety of filters available. This allows you to put as many prompts as you can on a single form instead of prompting the user for each piece of information.

To display this prompt, you must use a date field, even if you don't display the date fields. Here we will use the Listed Date:

@de WHERE (@de.li = ?1111111111111 ) max = 1
@de

Where Clause Field Positions:

Billing period
From date
To date
From client
To client
Sort radio buttons
Posted/ Payment date radio buttons
Operator From
Operator To
Custom Text 1
Custom Text 2
Status From
Status To

The above example has all the fields displayed, so you will be prompted to enter everything. This information is actually stored in a RAM database and can be accessed multiple times until cleared.

The printable information form to use is @car (EX: @car.fr).

Warning Note WARNING: If the data is not cleared out at the beginning of a report, the next time you call this form, it will still be populated. Same process as the @tsr fields above.

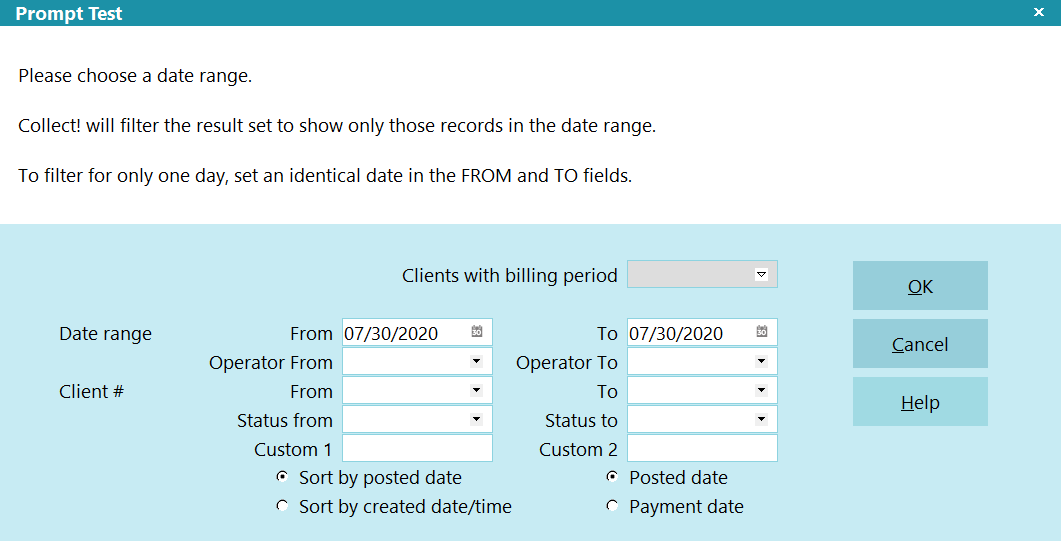

Prompt displaying all the fields

Useful Note The @DATETEXT command above works on this form, so you can put your own text in the text block.

This example demonstrates just the Date, Operator, Client #, and Status field.

@de WHERE (@de.li = ?0111100110011 ) max = 1
@de

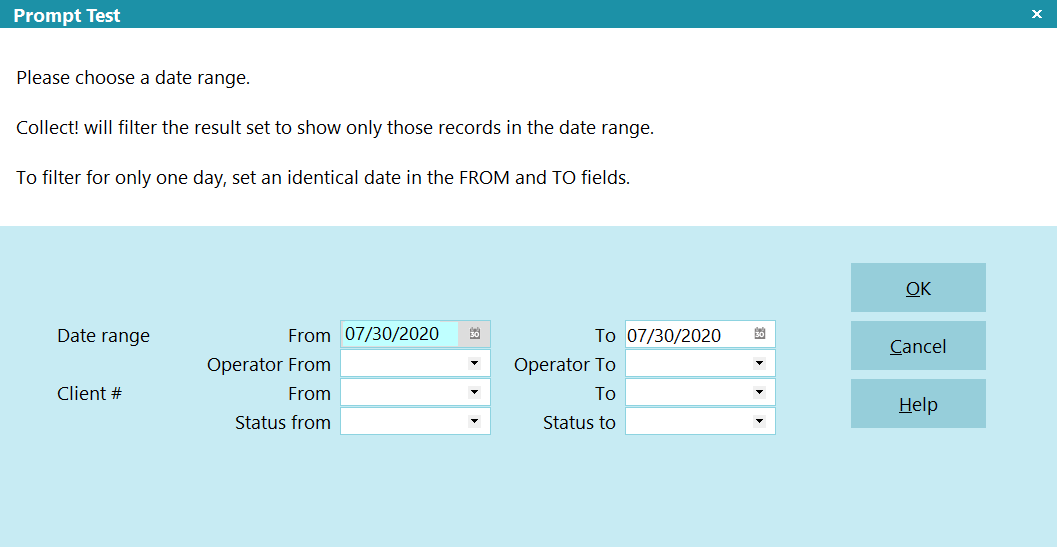

Prompt displaying selected fields

To print all debtors with these filters, the following code is used:

@de WHERE (@de.li = @car.fr .. @car.to) WHERE (@de.op = @car.of .. @car.ot)
WHERE (@de.cn = @car.fro .. @car.to1) WHERE (@de.sta = @car.sf .. @car.st)
@de.li @de.na
@de

Each field is definable. This example demonstrates just one Date and one Client #.

@de WHERE (@de.li = ?0101000110011 ) max = 1
@de

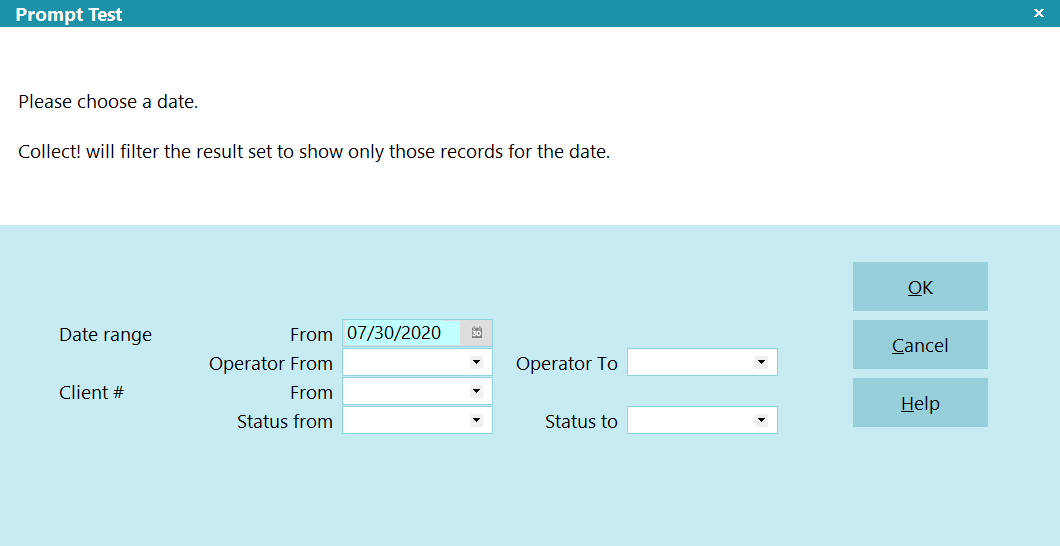

Prompt displaying selected fields without ranges

To print all debtors with these filters, the following code is used:

@de WHERE (@de.li = @car.fr) WHERE (@de.op = @car.of .. @car.ot)
WHERE (@de.cn = @car.fro) WHERE (@de.sta = @car.sf .. @car.st)
@de.li @de.na
@de

The Custom fields provide more flexibility. You can use them together as a range, or independently with both or just one visible. They are 120-character text fields.

You can also alias them, or any other field, and put a pick list on the fields. Here is an example of filters for the Attachment record searching on Class and Description. These are actually the Custom 1 and Custom 2 fields.

Prompt displaying selected fields without ranges

Prompt Once For Input

When you are printing a report to a tagged list, Collect! will prompt only once if your report contains a prompt for input. The input will be applied to each account in the list as it is printed.

Collect! can also process multiple prompts within the report and apply them to each tagged account as the report is printed.

Useful Note This relates to selecting the "All" option when printing from a list of tagged accounts.

Mask Data Entry On Prompt

You can also mask data entered when a prompt is presented to the user. One practical use of this is changing a receipt number on a transaction to indicate that the payment about to be processed has been authorized.

The question mark must be followed immediately by an asterisk to alert Collect! for masking the data entry. This works for all the field data types, String, Integer, Date, Time, Currency and Percentages.

Example:

@varNum# = ?* Ask your Supervisor to enter Auth Code

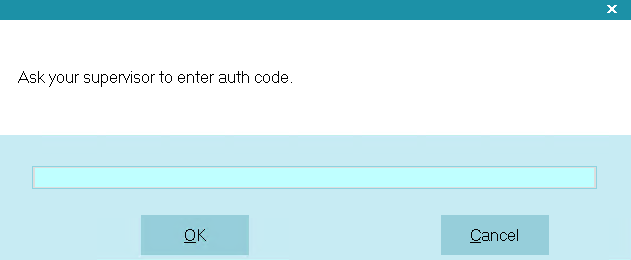

Prompt displays to the end user

When the data is entered in the Prompt, it is masked with "*". This hides the Authentication Code from the operator.

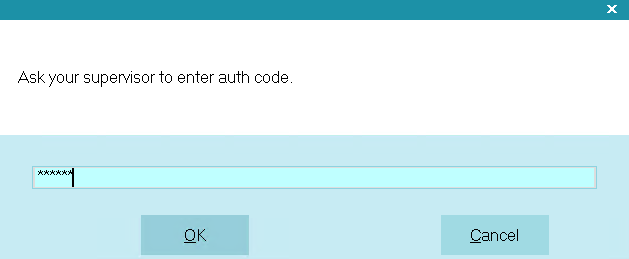

Prompt masks input

In this particular example, the report then changes the receipt number on the payment, using the real value of @varNum.

Example:

@EDITtr.rn = @varNum

The transaction is processed with the proper Authentication Code and account security is preserved.

Prompts With Text Limits

A string variable can hold up to 500 characters. If you are using prompts for limited messages, such as SMS messages, you can also limit the data entered to a specified value.

Variable Width

The question mark must be followed immediately by a number and space to alert Collect! for limiting the data entry. This works for just the string field data type.

Example:

@varMessage* = ?64 What is the message that you would like to use?

SMS Message

There is a predefined control designed for SMS messages that will automatically limit the text to 160 characters.

The question mark must be followed immediately by an hash/pound sign to alert Collect! for limiting the data entry. This works for just the string field data type.

Example:

@varSMS* = ?# What is the SMS message that you would like to send?

User Defined Prompts

In the sections above, several examples were discussed using text or date prompts like these:

@tvarPrompt* = ? Please enter ...
@de no total where ( @de.sta = ? )

The @prompt command enables you to display a dialog box to the screen with up to 6 user defined buttons. This command allows you to print a custom message to prompt a user to make a selection, then when a button is clicked, the value of the button will be returned to a variable. The @prompt command message must be created using plain text or report writer variables such as @var and @tvar.

Prompt Displayed by a Report

Use @prompt to:

Prompt a user for input in a report
Prompt a user for input in a control file

This command can only use variables for the message, allowing you to do set conditions, do calculations, retrieve database fields or give the end user any information needed. This minimizes error and gives the operators the ability to answer their own questions about what to do next when a special condition is encountered.

When running a control file, you can use the @prompt command to display a message when certain conditions are met, then prompt the operator for input when a certain debtor record is worked, for instance.

When printing a Collect! report you can display a prompt to the screen during the print process by using the @prompt command in your report code.

Syntax: @varPrompt* = @prompt([text message prompt variable], {button 1}, {button 2}, {button 3}, {button 4}, {button 5}, {button 6})

Useful Note The buttons display in right to left order, so button 1 will be the right-most button and must have a space after each comma.

Useful Note The variable cannot be declared before-hand (EX: @varPrompt* = " "). It must be declared as part of the prompt (EX: @varPrompt* = @prompt(...)).

Useful Note The buttons are optional. If you don't specify any buttons, the prompt will come up with a simple YES/NO prompt.

Examples

Yes/No Prompt:

@varMessage* = "Do you want to print this letter to Cosigners also?"
@varPrompt*  = @prompt(@varMessage)

User-Defined Message with Fixed Buttons:

@varMessage* = "How many Cosigners?"
@varPrompt*  = @prompt(@varMessage, All, Five, One)

User-Defined Message with a Variable Button:

@varButton1* = "One"
@varMessage* = "How many Cosigners?"
@varPrompt*  = @prompt(@varMessage, All, Five, @varButton1)

Useful Note You can use the report writer to come up with variable buttons based on loops or if conditions higher up, then return the applicable values to the prompt.

Useful Note If the Message text is empty, the prompt will not display, but if the button text is empty, then it will display a blank button.

Using the Return Value for Comparisons

Once the user selects a button, the literal value of the button is returned to the variable.

Examples using @varPrompt* = @prompt(@varMessage, All, Five, @varButton1):

If a user selects All, then All is returned to the @varPrompt variable.

@varResult* = No
@varResult  = Yes if ( @varPrompt = All )

If a user selects the variable @varButton1, then @varButton1 is returned to the @varPrompt variable.

@varResult* = No
@varResult  = Yes if ( @varPrompt = @varButton1 )

Useful Note You cannot do a comparison on the value of the button variable (in this example "One"), it must be the variable name.

Useful Note You cannot use the same variable name for a second prompt. Each prompt must have a unique name.

Summary

Collect!'s report writer enables you to query the user for data while running a report. The information entered by the user is then used by the report to complete the next steps. You can also mask data entered when a prompt is presented to the user.

This topic showed many examples of using prompts in reports. In doing so, it touched on several aspects of report writing that you may not be familiar with.
